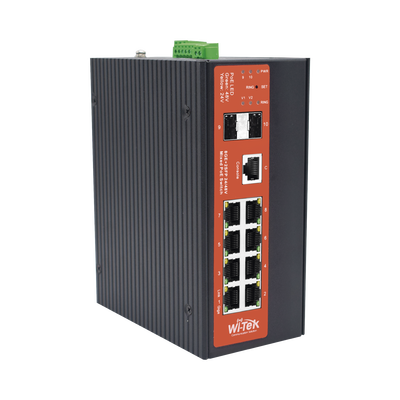

Switch Industrial Administrable Gigabit con 2 Puertos PoE bt + 6 Puertos PoE af/at o 24 V Pasivo + 2 SFP Gigabit, 240 W
SKU WI-PMS310GF-ALIEN-I
$7 481.00
In stock: 260 available
1
Save this product for later
Switch Industrial Administrable Gigabit con 2 Puertos PoE bt + 6 Puertos PoE af/at o 24 V Pasivo + 2 SFP Gigabit, 240 W
Product Details
Aplicación Típica
| Especificaciones | |
|---|---|
| Dimensiones | 165 x 135 x 70 mm |
| Interfaces |
(1-2) 10/100/1000Mbps PoE 802.3bt 60W 48V (3-8) 10/100/1000Mbps (PoE 24/48V ajustable) |
| Ventilador | Fanless |
| Consumo de Energía | 240 W (Max. con dispositivos PoE conectados) 15 W (Sin salida PoE) |
| Fuente de alimentación externa | DC3: 12-50V, 10A Max. DC2: 37-57V 8A Max. DC1: 37-57V 8A Max. |
| Puertos PoE (RJ45) | 802.3af/at PoE o 24 V PoE Pasivo |
| Bandwidth | 20Gbps |
| Mac Address Table | 8K |
| Packet Forwarding Rate | 18Mpps |
| Protection Level | Lightning protection 6KV 6KV ESD Contact discharge |
| Tempreratura de Operación | -40 to 80° C |
| Certificaciones | CE, FCC, RoHS |
| Características | |
| QoS | Soporta 802.1p CoS/DSCP priority 4 colas de prioridades |
| Capa 2 | IGMP Snooping V1/V2/V3 802.3ad LACP (hasta 8 grupos) Spanning Tree STP/RSTP/MSTP Port Isolation |
| VLAN | Soporta hasta 4K VLANs Port/ MAC/Protocol-based VLAN VLAN de gestión |
| Access Control List | L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID |
| Seguridad | IP-MAC-Port-VID Binding IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN SSH v1/v2 |
| Administración | Web-based GUI and CLI management SNMP v1/v2c/v3,compatible with public MIBs DHCP/BOOTP Client,DHCP Snooping,DHCP Option82 CPU Monitoring Port Mirroring |
| Otros | |
| Contenido del Paquete |
PoE Switch |
