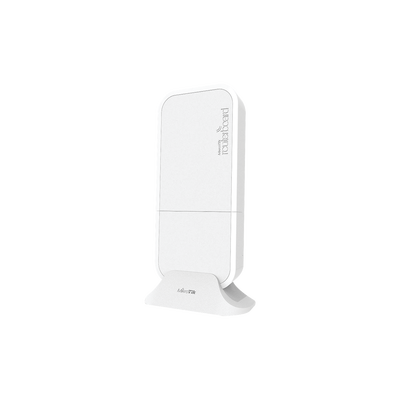

(wAP 60G AP) Punto de Acceso en 60GHz apertura 60º con Velocidades de "Hasta 1Gbps", Alcance aprox 200mts, p/8 CPE

(wAP 60G AP) Punto de Acceso en 60GHz apertura 60º con Velocidades de "Hasta 1Gbps", Alcance aprox 200mts, p/8 CPE

SKU RBWAPG-60AD-A
$4 979.39
In stock: 17 available
1
Save this product for later
Have questions?
Share this product with your friends
ShareSharePin it
(wAP 60G AP) Punto de Acceso en 60GHz apertura 60º con Velocidades de "Hasta 1Gbps", Alcance aprox 200mts, p/8 CPE
Product Details

El wAP 60G AP es una unidad inalámbrica integrada de 60 GHz resistente a la intemperie, que se puede utilizar en interiores o exteriores en diferentes escenarios: estación base, punto a punto o CPE.

La caja incluye un kit de montaje en pared, correas para montaje en poste, fuente de alimentación, inyector PoE y también soporte de mesa para usar el dispositivo en interiores. Penetra algunas ventanas según el material.

wAP 60G AP admite hasta ocho clientes simultáneos en distancias hasta de 200 m.

Especificaciones

Detalles
Código de producto RBwAPG-60ad-A
Arquitectura ARM32bit
CPU IPQ-4019
Recuento de núcleos de CPU 4
Frecuencia nominal de la CPU 716 MHz
Dimensiones 185 x 85 x 30 mm
Licencia de RouterOS 4
Sistema operativo RouterOS
Tamaño de RAM 256 MB
Tamaño de almacenamiento 16 MB
Tipo de almacenamiento FLASH
Temperatura ambiente probada -40 ° C hasta 70 ° C
MTBF Aproximadamente 200.000 horas a 25 ° C


Alimentando

Detalles
PoE in 802.3af/at
PoE in voltaje de entrada 11-57 V
Número de entradas DC 2 (toma de CC, PoE-IN)
Voltaje de entrada DC jack 11-57 V
Consumo máximo de energía 5 W
Recuento de ventiladores Pasivo


Ethernet

Detalles
Puertos Ethernet 10/100/1000 1


Certificaciones y aprobaciones

Detalles
Certificación CE, FCC, IC, EAC, ROHS



Ethernet test results

RBwAPG-60ad-A IPQ-4019 1G one port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 81,2 986.1 234,9 962.2 1482,6 759.1
Bridging 25 bridge filter rules 81,2 986.1 227,7 932.7 231,9 118.7
Routing none (fast path) 81,2 986.1 235,1 963.0 1421,8 728.0
Routing 25 simple queues 81,2 986.1 235,1 963.0 458,3 234.6
Routing 25 ip filter rules 81,2 986.1 234,9 962.2 236,8 121.2
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

Partes incluidas




  • Anillo de metal (uno)

  • Corbata de plástico con cremallera

  • soporte de escritorio wAP

  • Adaptador de corriente de 24 V 0,38 A

  • soporte de montaje wAP

  • Inyector Gigabit PoE
